A strategic asset that delivers measurable value throughout the entire lifecycle of a facility
Before BIM: the challenges we face
If you’re involved in the construction industry today, you’ve likely faced some of the following challenges:
- Costly construction and installation errors due to design conflicts.
- Project budget overruns and schedule delays.
- Limited transparency in budgeting and procurement.
- Increased O&M costs due to lacking or inaccurate as-built data.
- Poor client visibility during design development, 2D drawings are hard to interpret for non-technical stakeholders.
Turning challenges into opportunities with BIM
Addressing these challenges calls for a powerful methodology – BIM (Building Information Modeling).

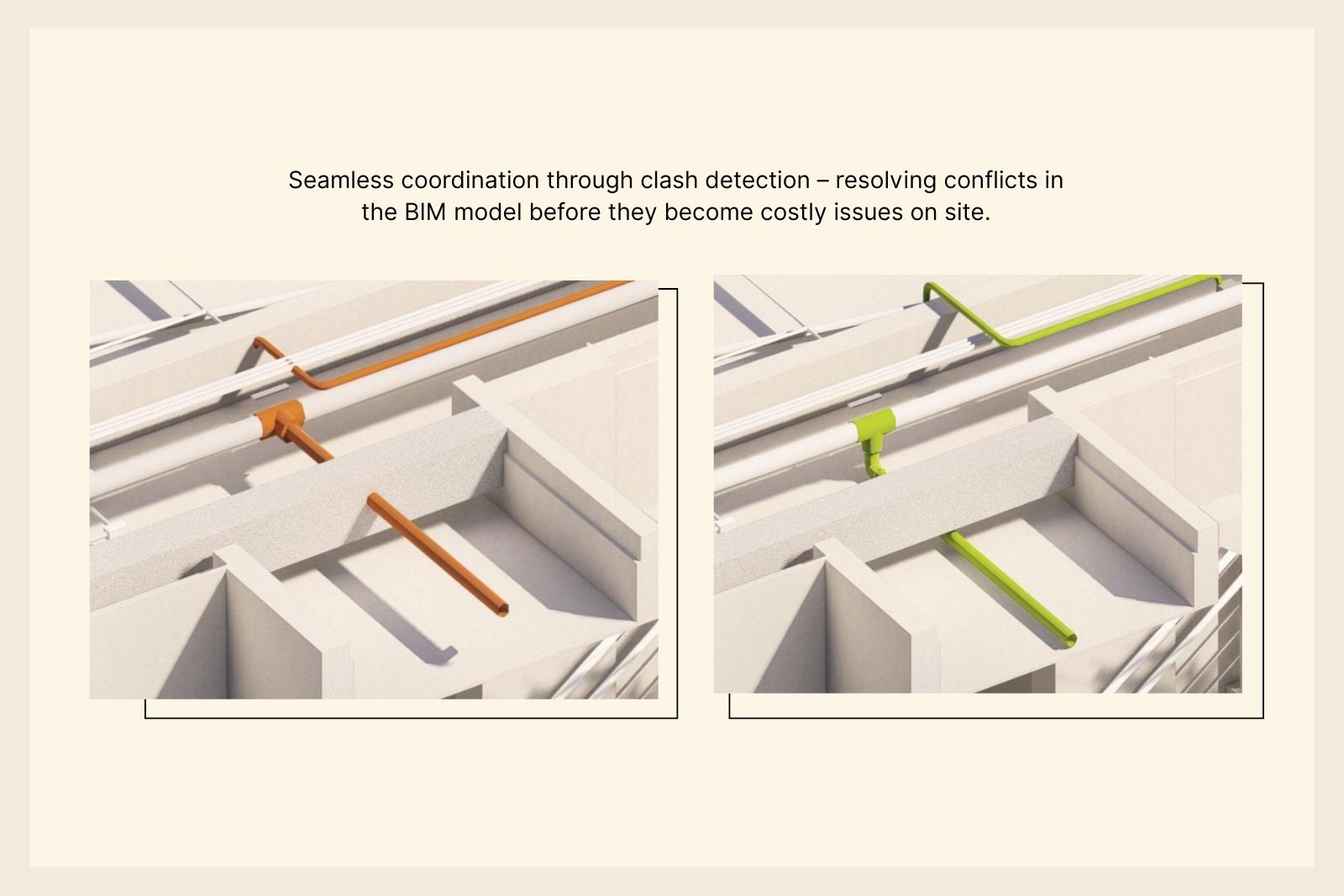

The Clash Detection
Imagine a design that has 30,000 conflicts. This is an underlying factor in numerous construction and implementation problems, even though some of these conflicts might not be important. A team of 10 skilled specialists would easily lose 3000 hours to detect such numerous issues without the support of advanced automated tools, and many would still go unnoticed. The resolution of such number of conflicts is practically impossible without the clash detection process, well developed in most of the BIM design platforms. BIM’s built-in clash detection capabilities automatically identify and resolve these issues early, especially the most expensive ones like MEP vs. structural/ architectural conflicts, preventing on-site rework and delays.
Budget saving and transparency

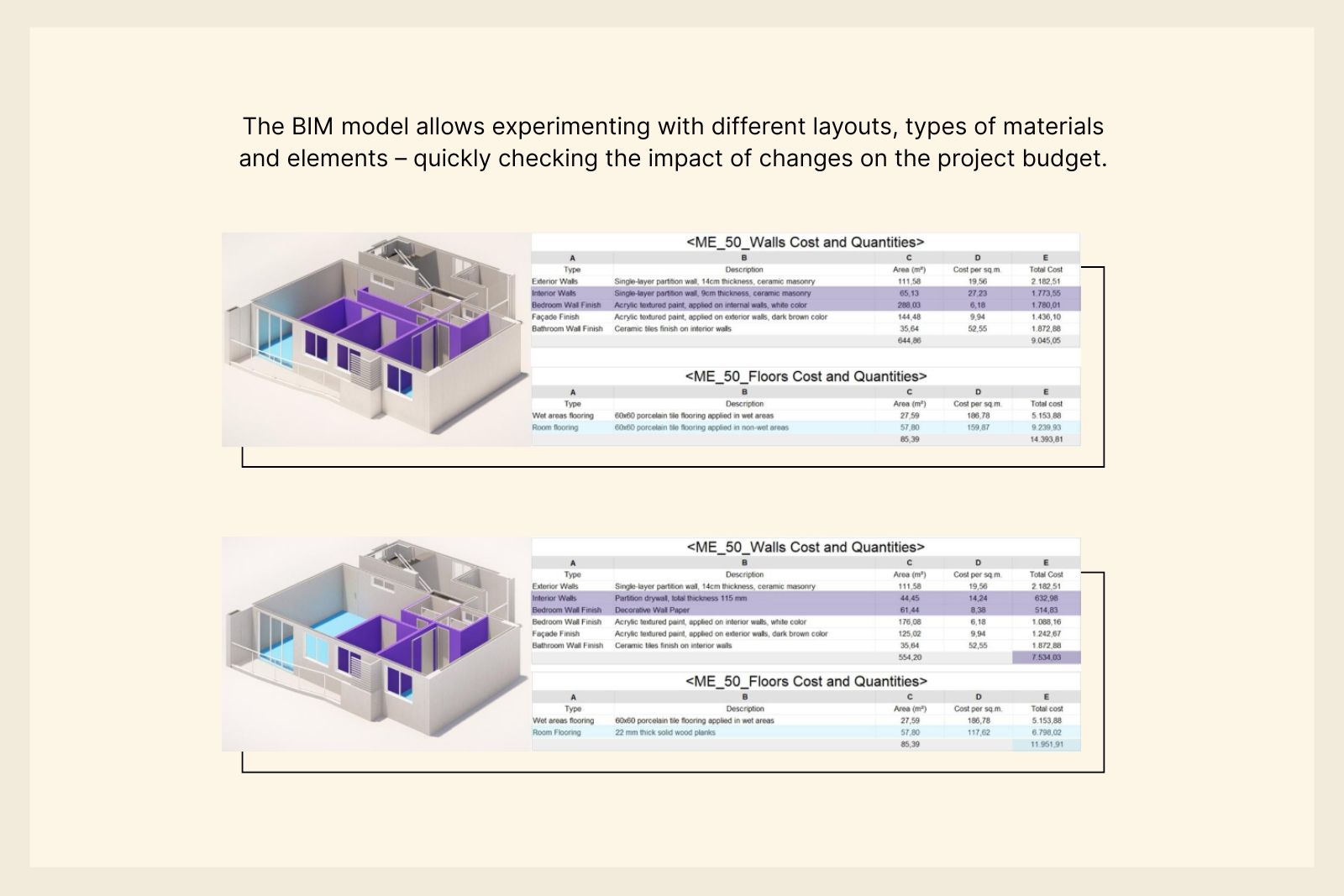

BIM process allows quick changes and design simulations to verify how certain decisions would impact the building budget. Thus, it allows early budget optimization and accuracy. The elimination of design errors and conflicts during the clash detection has significant cost impact since it is avoiding costly changes during construction and expensive on-site fixes. In projects like Data Center Design, 4D BIM is crucial to identify the project critical path and provide precision in the various systems implementation, limit downtimes, and avoid work overlapping and delays. The table below shows how the different stages of BIM use may affect the average implementation budgets.
| Scope of BIM Use | Average Budget Saving (%) |
| Basic 3D Modeling (Design stage only) | 5–10% |
| Coordinated BIM (Design + Clash detection + 4D Scheduling) | 10–15% |
| Full Lifecycle BIM (Design, Construction, FM integration) | 15–20% or more |

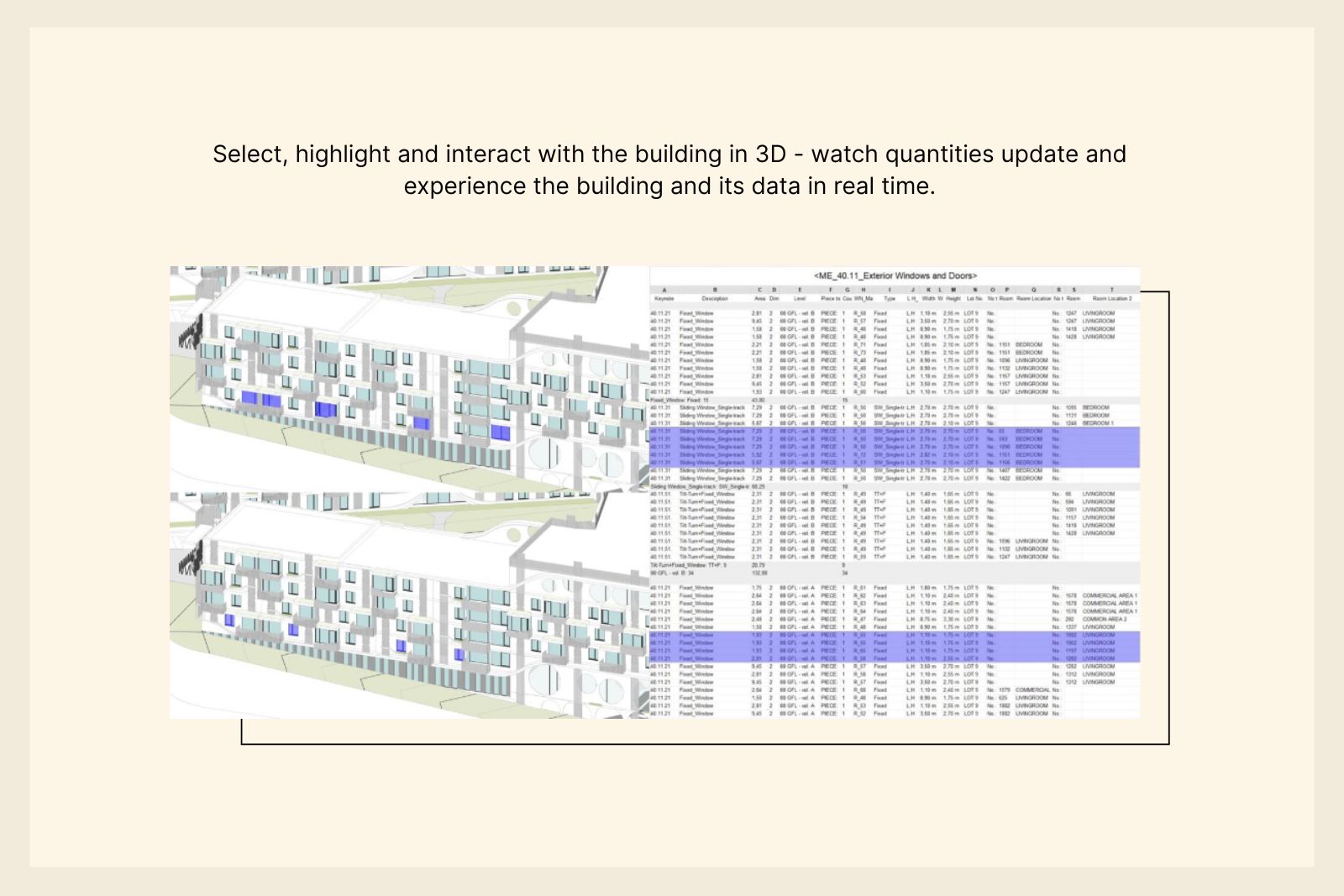

Previously, creating accurate Bills of Quantities (BoQs) took weeks, with no guarantee of completeness and accuracy. Not to mention the revisions needed at later stages. Today, BIM automates this process. The powerful BIM tools have dramatically changed the game in the BoQ process in terms of reliability, speed and precision. The rich elements/ objects data in the model allows all project changes to be rapidly returned into modified quantities, supporting quick design solutions and project modifications. Even for large-scale facilities, updated BoQs can be generated within hours. Following the above said, the BIM models have dramatically increased the budget transparency scale. The scope of modifications needed are now easily checked and validated, thus providing extremely accurate Change Orders during implementation.
Data-driven facilities management

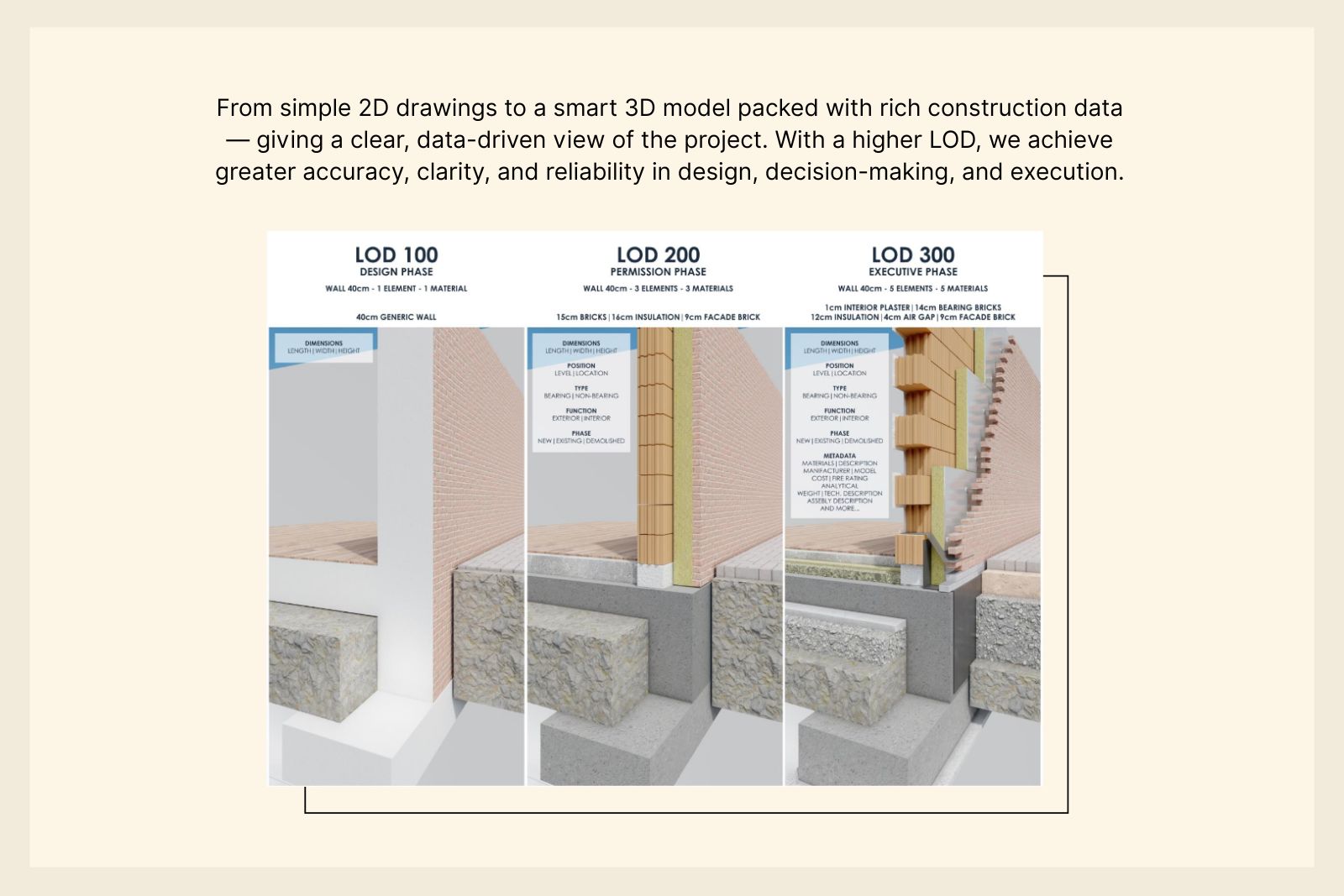

BIM process is playing a vital role in Facility Maintenance lifecycle and systems operations. The Level of Detail (LOD) provided in the BIM models is essential to feed various systems and processes, such as Building Management Systems (BMS), inventory tracking, predictive maintenance, and many others. The elements and objects in the BIM model can be easily tracked and surveyed through the integrated data management system built in the model. On top, the update of the elements data is now possible by means of automated tools that could quickly upload the actual data entry.
Empowering clients with real-time 3D design interactions
The BIM foundation is the creation of a detailed 3D design model, following the established company standards from the very beginning. This is bringing unparalleled clarity to all stakeholders in the process and is a very powerful tool to visualize the future building at all different design stages. Site topography, optimal orientation for energy efficiency, access for logistics and service connections, external facility connections, buffer zones, and even visibility from key operational areas can all be efficiently resolved during the concept design phase, with the valuable input from the client.
With BIM, you don’t just design projects — you build certainty, drive efficiency, and unlock long-term value
We see BIM not just as a design tool, but as a strategic edge in the creation of advanced projects and infrastructure solutions. By leveraging smart modeling, automated clash detection, simulations, and real-time data management, the root causes like cost overruns, delays, and inefficiencies are smartly solved. The result? Possibilities to play scenarios, make simulations of various building and facility solutions, clearer decisions, and greater budget control, from concept to operation. With BIM, clients don’t just build, they build transparently and smarter. The adoption of BIM has proven to be a transformative solution to many of the persistent challenges in the construction industry. By leveraging advanced digital modeling, clash detection, and 4D scheduling, BIM significantly improves design accuracy, cost control, timeline management, and stakeholder engagement. The ability to simulate and visualize every stage of the project empowers both technical and non-technical participants, while automated tools enhance transparency and speed across budgeting, quantity take-offs, and facility management. Ultimately, BIM is not just a design tool, it’s a strategic asset that delivers measurable value throughout the entire lifecycle of a facility.
