Building Information Modeling (BIM)

This is the starting point. All project information is produced using 2D CAD or paper-based methods with no data sharing between teams. There is no model, no collaboration, and no common standards. Stakeholders work independently, which increases the risk of miscommunication, errors, and rework.

Projects at this level use a combination of 2D construction drawings and basic 3D concept models. Data is shared electronically, often using a Common Data Environment (CDE) that helps manage documents and reduce errors. Collaboration is limited, and each discipline is still responsible for managing its own data – but there is structure and consistency in place.

At Level 2, all disciplines work in their own 3D models but coordinate by exchanging information using agreed file formats like IFC or COBie. The focus is on collaboration across teams while maintaining control over individual models. This level significantly reduces clashes and rework and is often the minimum requirement for public sector projects in many countries.

This level represents true collaboration. All stakeholders work from a single, shared 3D model in a central cloud-based environment. Everyone accesses the same data in real time, allowing for better decisions, fewer conflicts, and full lifecycle integration. Level 3 BIM is aligned with the concept of Open BIM and supports advanced applications like smart cities and digital twins.

As BIM maturity increases, models are enhanced with additional dimensions of data:

4D BIM (Time): Adds project scheduling and construction sequencing, allowing teams to visualize how a project will unfold over time.

5D BIM (Cost): Integrates detailed cost estimation, forecasting, and budget tracking into the model – making financial planning more accurate and transparent.

6D BIM (Sustainability): Introduces environmental data to support energy analysis, carbon tracking, and long-term building performance.

7D BIM (Facilities Management): Extends the model into the operation and maintenance phase, helping owners manage assets, plan maintenance, and track lifecycle performance.

BIM allows architects to visualize, test, and refine designs with greater control over detail, performance, and compliance. From massing studies and facade analysis to material selection and solar modeling, BIM enhances creative freedom while maintaining technical accuracy. It also enables smoother collaboration with engineers and consultants through shared models and linked documentation – reducing costly design changes down the line.

Civil engineers benefit from BIM’s ability to integrate topography, infrastructure, and utilities into one coordinated model. It supports early-stage clash detection, 4D phasing for construction sequencing, and adherence to regional standards such as ISO 19650 or IFC-based workflows. With geospatial data overlays, drainage modeling, and alignment visualization, civil teams can plan and deliver safer, more efficient systems with fewer surprises during execution.

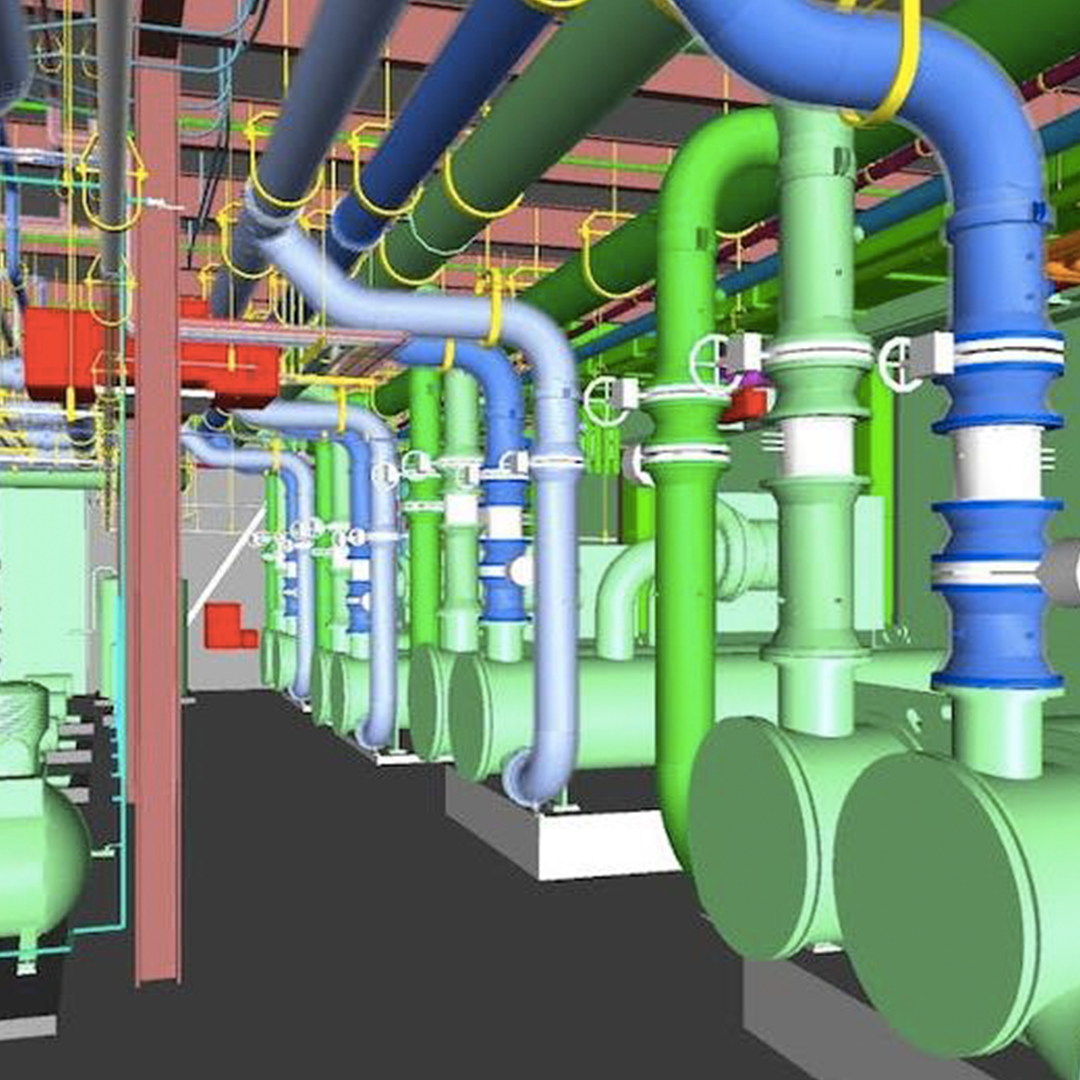

BIM equips MEP designers with the tools to model HVAC, power, lighting, fire protection, and plumbing systems in a coordinated environment. With real-time clash detection, system routing optimization, and integration with manufacturer data (via Revit families or IFC objects), MEP engineers reduce field errors and speed up prefabrication workflows. The result is higher-quality installations, smoother commissioning, and models that carry through into facility management systems.

Structural engineers use BIM to analyze loads, connections, and performance with integrated analysis and detailing tools. From reinforced concrete to complex steel frameworks, BIM supports parametric modeling, rebar detailing, and fabrication-ready documentation. The shared digital model improves communication with architects and MEP teams, while LOD standards ensure precision from concept to construction – reducing RFIs and rework during build.

BIM is widely used in the design and management of roads, rail networks, bridges, tunnels, and public transit systems. It supports clash detection across disciplines, enables 4D phasing for construction logistics, and improves stakeholder coordination. BIM also connects with GIS data, making it ideal for smart city integration and large-scale infrastructure planning.

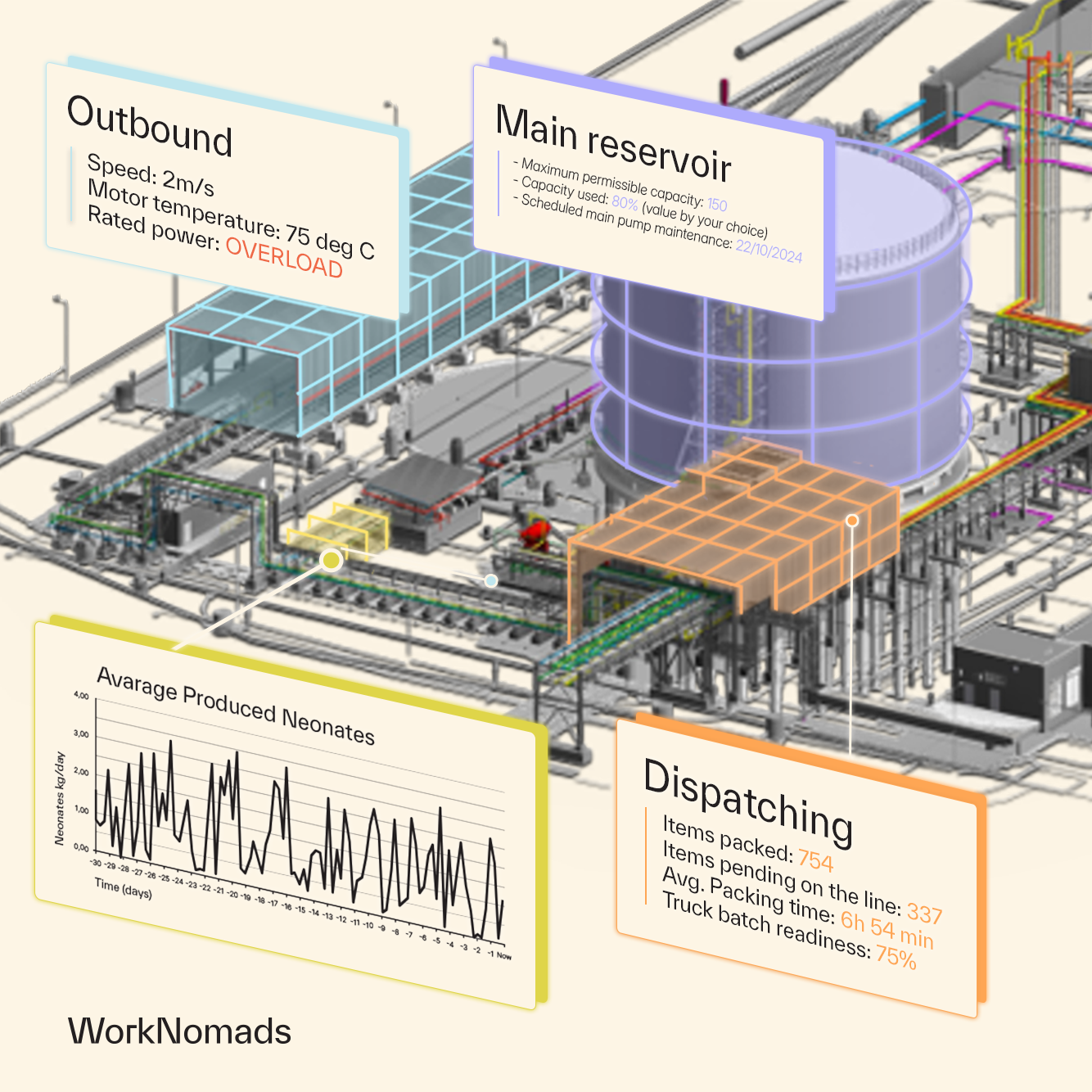

In manufacturing environments, BIM is key for factory layout planning, equipment coordination, utility integration, and maintenance scheduling. It enables simulation of process flows, spatial planning for machinery, and seamless MEP coordination — reducing risk during upgrades or expansions. The BIM model often forms the foundation for digital twin systems.

Hospitals, clinics, and labs demand precise system integration (HVAC, gas lines, MEP) and compliance with strict safety regulations. BIM supports these needs with accurate modeling, space utilization planning, and lifecycle data for long-term maintenance. It helps teams visualize and validate complex systems before construction begins, improving both patient care and operational safety.

BIM helps design and manage energy infrastructure such as power plants, substations, water treatment facilities, and renewable energy sites. It supports asset tracking, regulatory compliance, spatial coordination, and long-term facility management. Models can be linked with SCADA or IoT systems to drive predictive maintenance and optimize system performance.

BIM (Building Information Modeling) is not just a design tool — it’s a collaborative process that integrates 3D models with time, cost, and operational data. Unlike CAD, which focuses on static drawings, BIM connects all project disciplines in one intelligent model that supports coordination, planning, and lifecycle management.

BIM reduces rework, improves stakeholder coordination, and gives you better visibility into cost, schedule, and risk. It streamlines project communication, helps prevent costly mistakes, and creates a reliable foundation for long-term facility maintenance.

Not at all. While BIM is often mandated for public contracts, it offers value on any project that involves complexity, multiple trades, or long-term operation. Even smaller developments benefit from reduced errors, faster approvals, and better-informed decisions.

BIM projects must comply with specific data standards and workflows – such as ISO 19650 or IFC/COBie formats — to ensure consistency and compatibility across teams. We guide you through these requirements to ensure smooth collaboration and regulatory compliance.

Yes. Through reverse BIM or scan-to-BIM services, we can convert existing infrastructure into accurate digital models. This is especially useful for renovation, retrofitting, or extending the lifecycle of your assets through better data and planning.
